Folding Container House
Foldable house Manufacturer- Alpha Smart House
Alpha Smart House offers innovative Modular Foldable Housing solutions designed to meet the demands of modern living with flexibility and efficiency. Our foldable houses are built using high-quality materials and advanced engineering, ensuring durability, strength, and long-lasting performance. Designed for quick installation and easy relocation, these structures provide a cost-effective alternative to traditional construction without compromising on comfort or style. With smart space utilization, modern interiors, and customizable layouts, Alpha Smart House delivers practical and sustainable housing solutions ideal for residential, commercial, and temporary applications.
What is a Z-Type folding container house?
Alpha Smart House Z-Type foldable container house features a unique zig-zag folding mechanism—lift the roof to auto-unfold walls, crane-free 8-minute installation. Factory pre-wired & pre-fitted, galvanized steel frame, waterproof roof, ideal for construction camps, offices, emergency shelters & global export.
KEY FEATURES:
- Z-shaped sawtooth folding + roof lifting installation
- Rapid deployment (completed in 8 minutes)
- Enhanced roof and structural stability
- Extreme transportation efficiency
- High durability and reusability

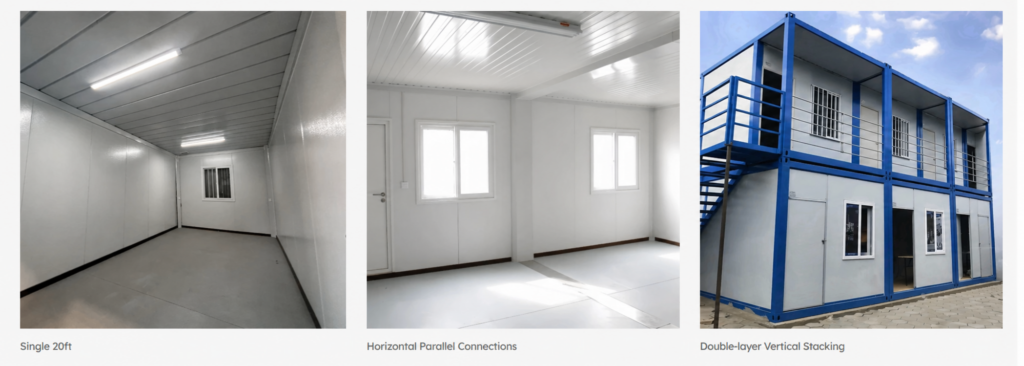

Foldable Container House Layout Options

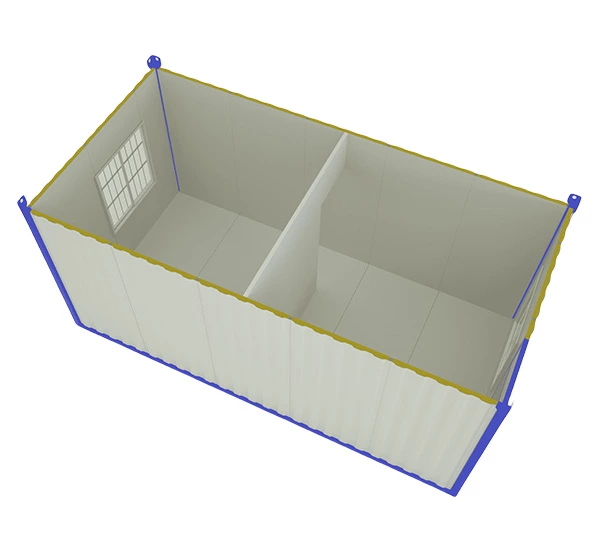

We are primarily used for construction site offices, worker dormitories, temporary accommodation, and project camps. The standard configuration uses a single 20ft container as the basic unit, which can be configured as a single dormitory, double dormitory, or independent office. Standard features include an entrance door, aluminum alloy windows, electrical wiring, and LED lighting.
Regarding space expansion, we support the free combination of multiple containers, allowing for horizontal parallel connections, vertical stacking, or L-shaped layouts. This enables the extension of multi-functional areas such as meeting rooms, management offices, and public restrooms. There is no upper limit to the number of combinations, fully meeting the expansion needs of large-scale engineering projects or long-term camps.
Z-Type Folding Container House
Quick response, safe and comfortable After natural or man-made disasters such as earthquakes, floods, and wars.
X-Type Folding Container House
Alpha Smart House X-Type folding container house uses horizontal sliding X-mechanism—pull side walls outward along tracks.
Folding Container House Specifications :
Main Frame Material
- Top Main Beam: Q235B galvanized pipe, 60×80×1.5mm
- Bottom Main Beam: Q235B galvanized pipe, 80×140×1.5mm
- Front & Rear Main Beams: Q235B galvanized pipe, 60×80×1.5mm
- Sidewall Frames: Q235B galvanized pipe, 40×80×1.5mm
- Top & Bottom Load-bearing Beams: Q235B galvanized pipe, 40×40×1.5mm
Electricity
- Voltage Standards Supported: Indian Standards
Electrical Components
- 20A Circuit Breaker
- Standard Power Outlet
- Air Conditioner Socket
- LED Lighting Fixtures
Floor
- Base Floor Board: 18mm cement fiberboard
- Surface Flooring: 1.6mm PVC flooring
Wall Panel
- High-strength composite sandwich structure adopted
Side Wall Panel
- 50mm composite panel
- 0.23mm steel plate + rock wool + 0.23mm steel plate
Front & Rear Wall Panels
- 65mm composite panel
- 0.23mm steel plate + basalt rock wool + 0.23mm steel plate
Insulation Performance
- Rock wool thermal conductivity: 0.04 W/(m·K)
Ceiling
- Protective Coating: Electrostatic spraying, high-gloss white anti-corrosion coating
- Exterior Roof Plate: 0.5mm galvanized steel plate
- Insulation Layer: 50mm glass wool roll
- Internal Ceiling: V930 type color steel ceiling, 0.25mm
Customization Service
- House dimensions can be customized
- Interior layout can be adjusted
- Wall panel materials are optional
- Door and window configurations can be upgraded
- Electrical standards can be customized according to national standards
Alpha Smart House Folding Container House Manufacturer | One-Stop Solution
Alpha Smart House focuses on providing high-quality, efficient, and customized folding container house solutions to global clients, with its core strengths in independent research and development, precision manufacturing, and full-chain services.

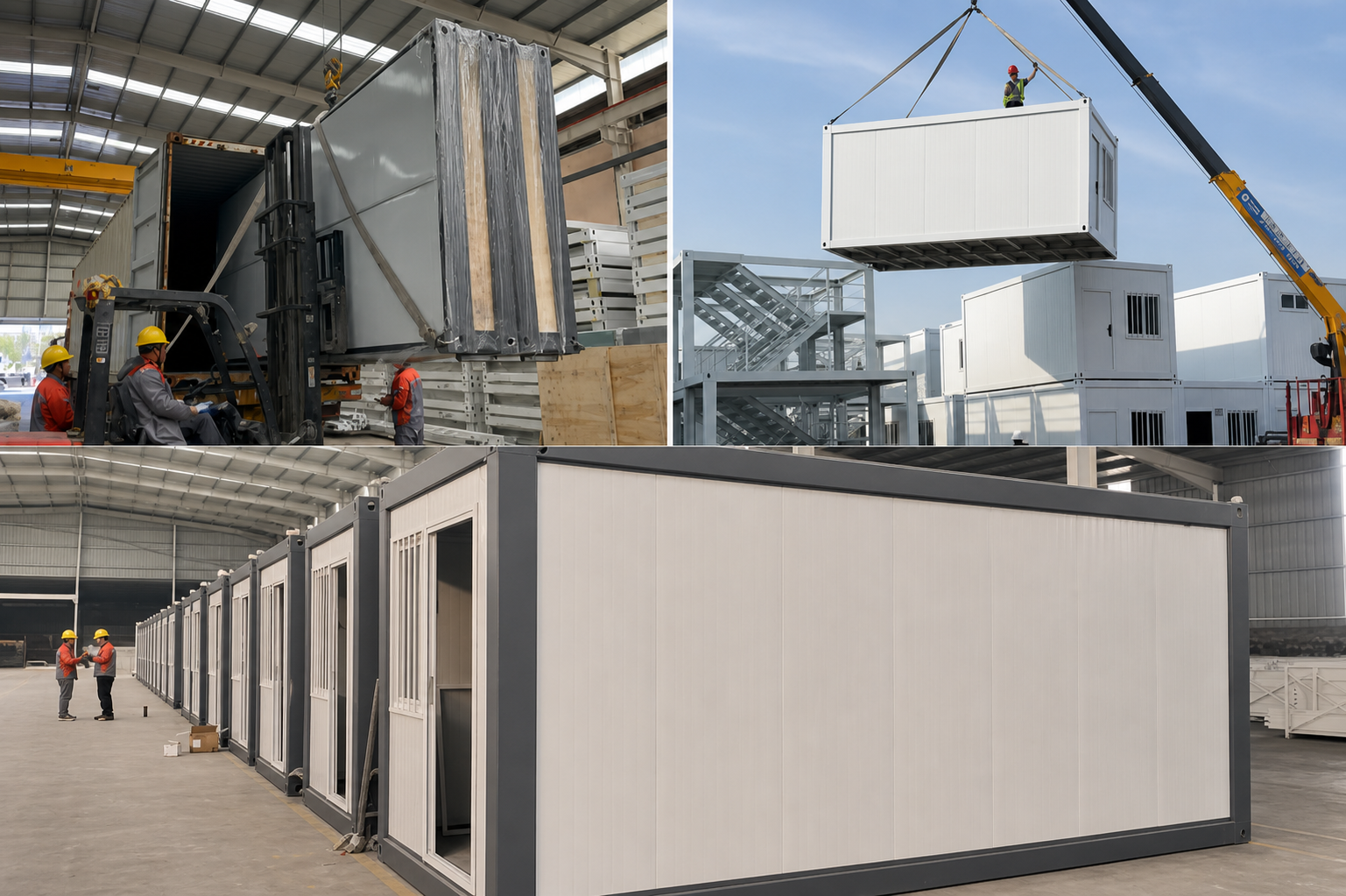

Our products strictly adhere to international certification standards such as ISO. We possess a modern, intelligent production base and standardized, fully automated production lines, enabling large-scale, meticulous production of folding container houses. We rigorously control every production process, from material selection and component processing to finished product testing, implementing standardized management throughout to eliminate potential quality issues and ensure that every product meets the stringent requirements of our global clients.

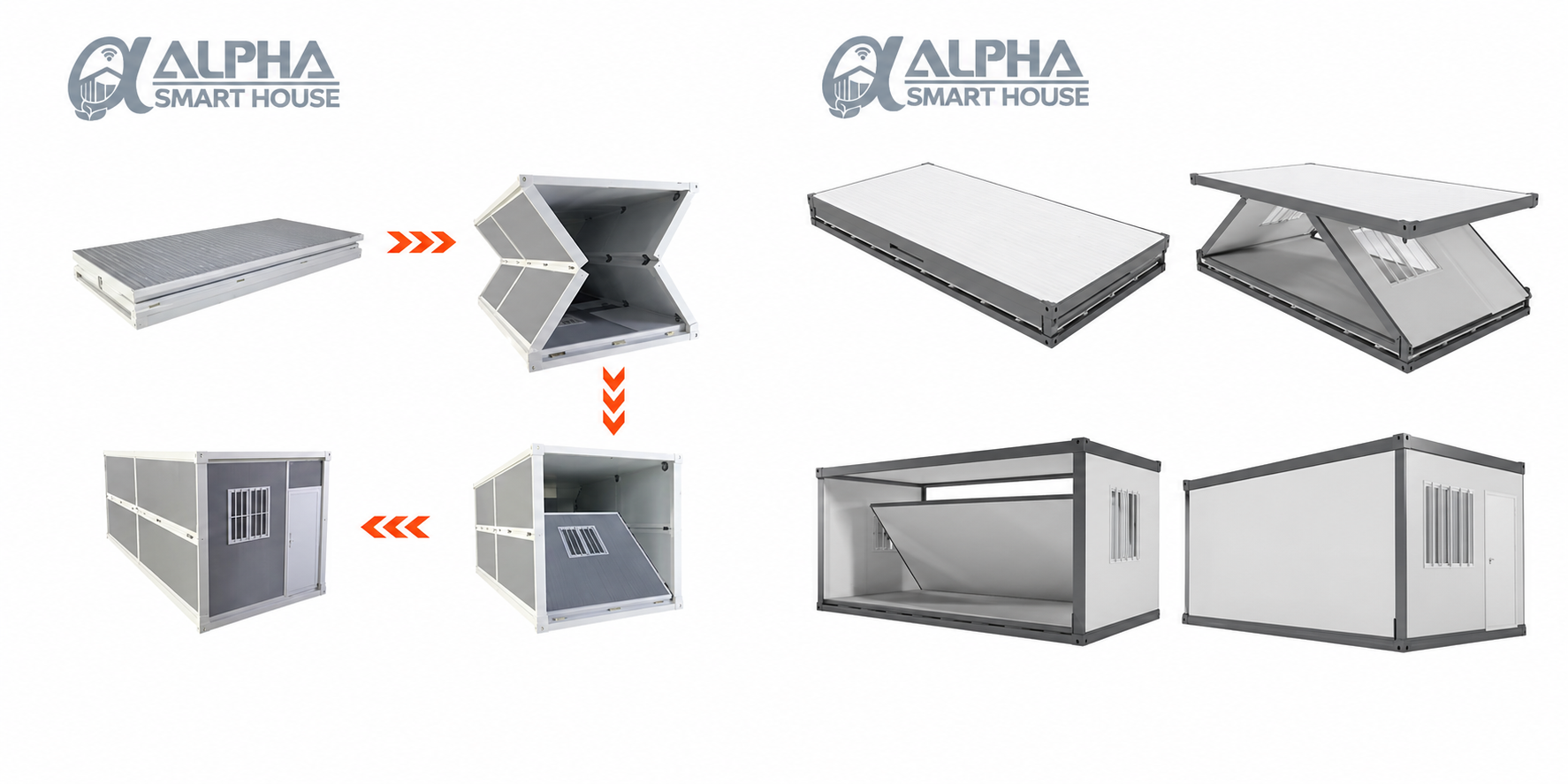

Two Folding Structure Types
Alpha Smart House folding container houses feature an X/Z type double-folding structure, both with standard dimensions of 5800×2480×2530mm when folded. They utilize a high-strength hot-dip galvanized steel frame and a precision hinge/slide rail system, having undergone over 1000 folding cycles.
- The X-type folding container house uses a horizontal cross-folding logic, with the two side walls folding towards the center to converge in an “X” shape.
- The Z-type folding container house uses a Z-shaped overlapping folding logic, with the bottom beam, middle wall, and roof overlapping in a “Z” shape, reducing the volume to approximately 1/4 of its unfolded state
Durable and environmentally friendly folding structure
Alpha Smart House ( ASH ) folding container houses adhere to high-quality standards. The main frame uses hot-dip galvanized steel, professionally treated for corrosion resistance, effectively resisting the effects of moisture and rust, and adaptable to various global climates.
The walls and roof use Class A fire-resistant and heat-insulating sandwich panels, offering fire resistance, insulation, and soundproofing. The panels are lightweight yet high-strength, balancing structural load-bearing capacity with easy folding.
Doors and windows use thermally broken aluminum alloy with double-glazed tempered glass and sealing strips to enhance waterproofing and sound insulation. The IP65 waterproof rating can withstand heavy rain, sandstorms, and other severe weather conditions.
All materials meet environmental standards, with a recycling rate exceeding 95%, practicing low-carbon principles and reducing the total life-cycle cost.
Foldable modular house full-scenario adaptation solution

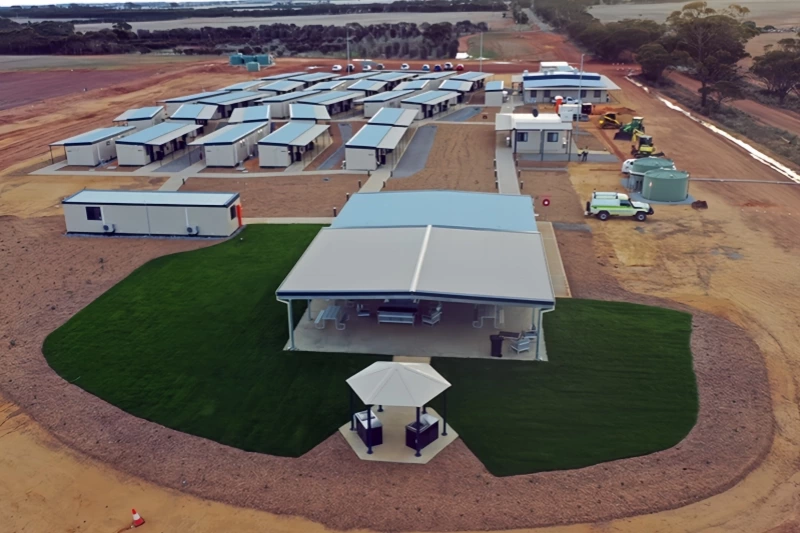

In engineering construction scenarios, it is the preferred choice for construction site barracks, enabling rapid setup of dormitories and offices, and allowing for repeated relocation and relocation, reducing construction support costs.
In emergency response scenarios, it can quickly establish emergency shelters and rescue command centers, effectively adapting to various outdoor environments and strengthening emergency defenses.
In public welfare and special scenarios, it is suitable for rural infrastructure, photovoltaic power station barracks, temporary classrooms, etc., meeting diverse needs in public welfare and outdoor settings.
